Galvanic Isolators
Our Galvanic Isolators reduce the galvanic corrosion that results from stray power on the AC ground wire, protecting your boat and reducing maintenance costs. They are the only devices permitted to interrupt a boat's AC ground.
Battery Isolators
Designed for DC power systems, our Battery Isolators split power from charging sources, such as alternators and solar chargers. This ensures one battery cannot discharge into another and enables users to charge multiple batteries from a single alternator.
Galvanic Isolators
ProSafe™ FailSafe Galvanic Isolators
The ProSafe FailSafe series of galvanic isolators prevents the most common forms of corrosion and premature zinc loss. When installed on a boat connected to AC shore power, ProSafe FailSafe isolators interrupt galvanic current flow with other boats at a marina.
ProSafe FailSafe models are compatible with 30 and 50 amp shore cord applications.

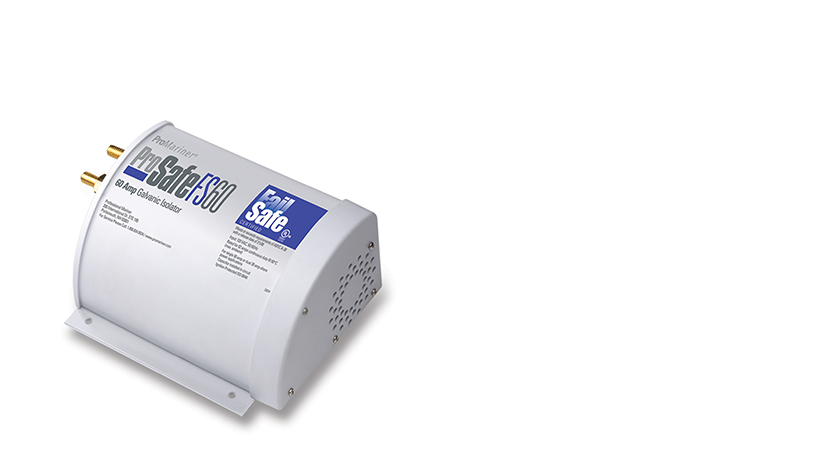

60 Amp ProSafe™ FailSafe Isolator
Part # 22074
For use with one 50A shore cord, or two 30A shore cords, the 60 Amp ProSafe FailSafe Galvanic Isolator meets FailSafe criteria for conducting inrush currents of 5,000A and cools itself when necessary. This protects your boat's outdrive, props and metal fittings while maximizing zinc life while at a marina.
Key Features
- Compatible with one shore cord up to 50A or two shore cords up to 30A
- ABYC A-28 certified
- Meets FailSafe criteria for conducting inrush currents of 5,000A
- Equipped with self-cooling mode
- Ignition protected ISO 8846
- Five-year warranty

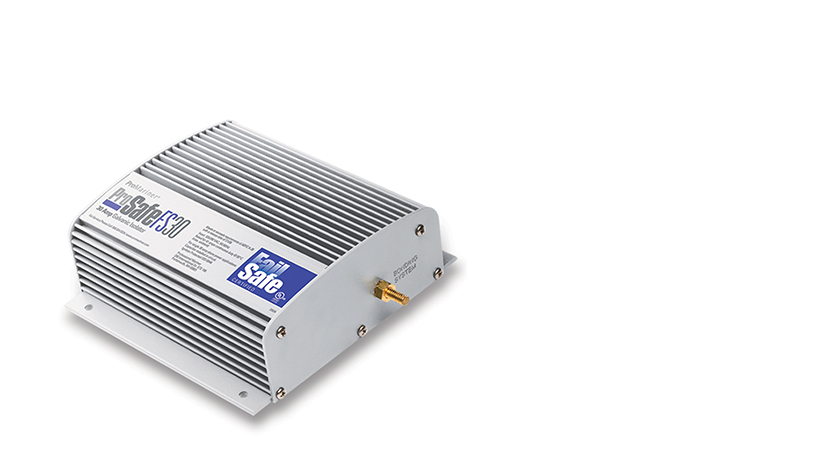

30 Amp ProSafe™ FailSafe Isolator
Part # 22034
The 30 Amp ProSafe FailSafe Galvanic Isolator protects your boat's outdrive, props and metal fittings while maximizing zinc life while at a marina. For use with 30A shore cord applications, the 30 Amp ProSafe FailSafe Isolator meets FailSafe criteria for conducting inrush currents of 3,000A.
Key Features
- Compatible with one shore cord up to 30A
- ABYC A-28 certified
- Meets FailSafe criteria for conducting inrush currents of 3,000A
- Ignition protected ISO 8846
- Five-year warranty
Battery Isolators
Multi Battery Isolators
ProMariner’s Multi Battery Isolators charge multiple batteries simultaneously while preventing total discharge of the starter battery. Fitted with gold-plated terminals for improved efficiency, our isolators are built for challenging conditions and benefit from an IP68 rating. Available in models ranging from 70 to 130 amps.

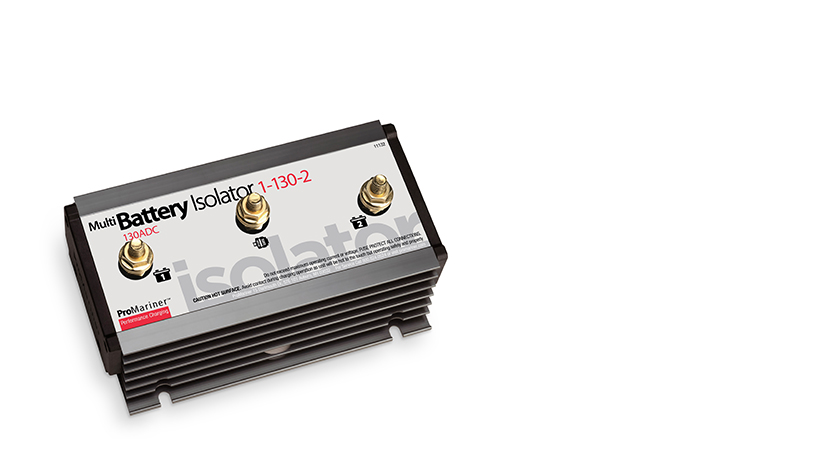

1-130-2
Part # 11132
The 1-130-2 Battery Isolator allows simultaneous charging of two batteries from one alternator, without connecting the batteries together.
Key Features
- 130 Amp max current
- One alternator, two batteries
- Waterproof IP68 rating
- Ground wire not required
- Easy to install diode-based design
- Corrosion resistant
- ROHS, CE, Prop65 and ABYC E-11 compliant
1-130-3
Part # 11133
The 130 Amp max current 1-130-3 Battery Isolator facilitates concurrent charging of three batteries from a single alternator.
Key Features
- 130 Amp max current
- One alternator, three batteries
- Waterproof IP68 rating
- Ground wire not required
- Easy to install diode-based design
- Corrosion resistant
- ROHS, CE, Prop65 and ABYC E-11 compliant

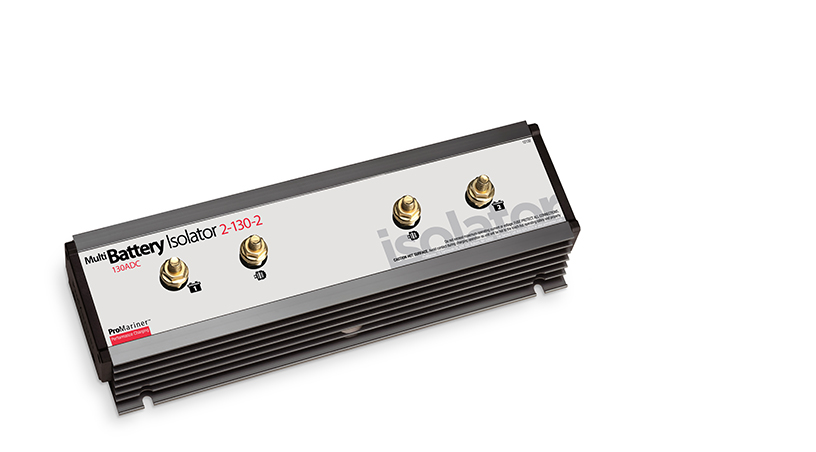

2-130-2
Part # 12132
The 2-130-2 Battery Isolator allows simultaneous charging of two batteries from two alternators, without connecting the batteries together.
Key Features
- 130 Amp max current
- Two alternators, two batteries
- Waterproof IP68 rating
- Ground wire not required
- Easy to install diode-based design
- Corrosion resistant
- ROHS, CE, Prop65 and ABYC E-11 compliant

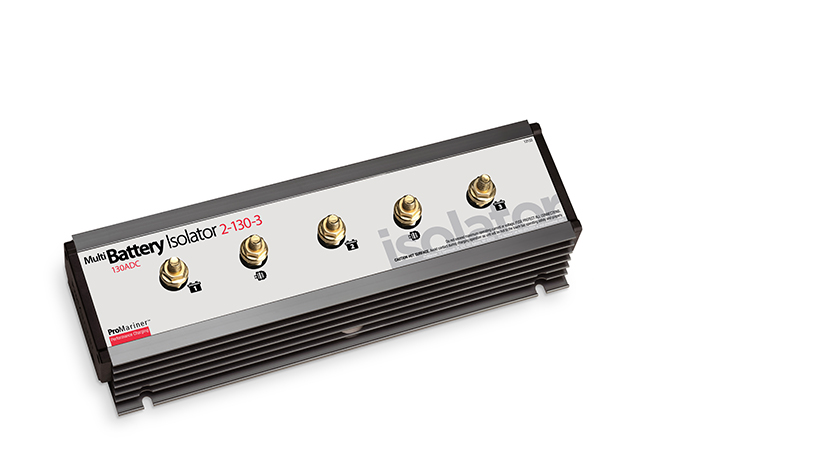

2-130-3
Part # 12133
A 130 Amp battery isolator, the 2-130-2 allows concurrent charging of three batteries from two separate alternators without having to connect the batteries together.
Key Features
- 130 Amp max current
- Two alternators, three batteries
- Waterproof IP68 rating
- Ground wire not required
- Easy to install diode-based design
- Corrosion resistant
- ROHS, CE, Prop65 and ABYC E-11 compliant

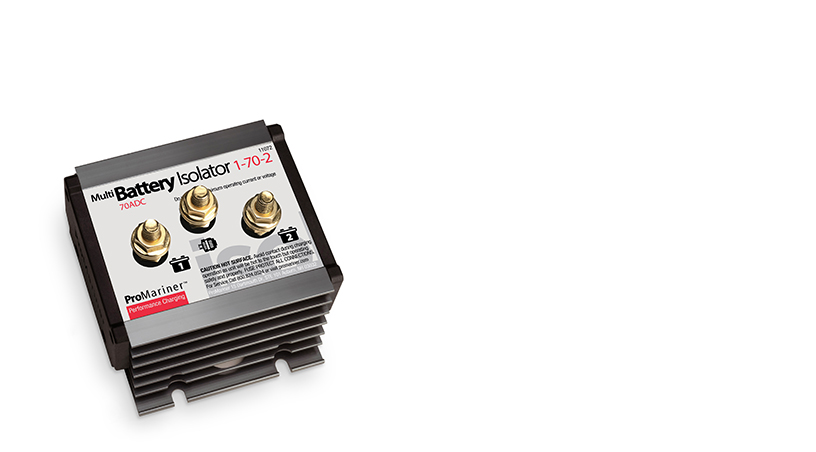

1-70-2
Part # 11072
The 1-70-2 Battery Isolator allows simultaneous charging of two batteries from one alternator, without connecting the batteries together.
Key Features
- 70 Amp max current
- One alternator, three batteries
- Waterproof IP68 rating
- Ground wire not required
- Easy to install diode-based design
- Corrosion resistant
- ROHS, CE, Prop65 and ABYC E-11 compliant
1-70-3
Part # 11073
The 70 Amp max current 1-70-3 Battery Isolator allows concurrent charging of three batteries from a single alternator.
Key Features
- 70 Amp max current
- One alternator, three batteries
- Waterproof IP68 rating
- Ground wire not required
- Easy to install diode-based design
- Corrosion resistant
- ROHS, CE, Prop65 and ABYC E-11 compliant
2-70-2
Part # 12072
The 2-70-2 Battery Isolator enables simultaneous charging of two batteries from two alternators, without having to connect the batteries together.
Key Features
- 70 Amp max current
- Two alternators, two batteries
- Waterproof IP68 rating
- Ground wire not required
- Easy to install diode-based design
- Corrosion resistant
- ROHS, CE, Prop65 and ABYC E-11 compliant
2-70-3
Part # 12073
The 70 Amp 2-70-3 Battery Isolator allows concurrent charging of three batteries from two different alternators without connecting the batteries together.
Key Features
- 70 Amp max current
- Two alternators, three batteries
- Waterproof IP68 rating
- Ground wire not required
- Easy to install diode-based design
- Corrosion resistant
- ROHS, CE, Prop65 and ABYC E-11 compliant
Battery Isolators
ProIso™ Charge
The ProIso Charge series allows you to save space and time by eliminating traditional diode-based isolators and typical voltage loss while still charging multiple battery banks simultaneously.

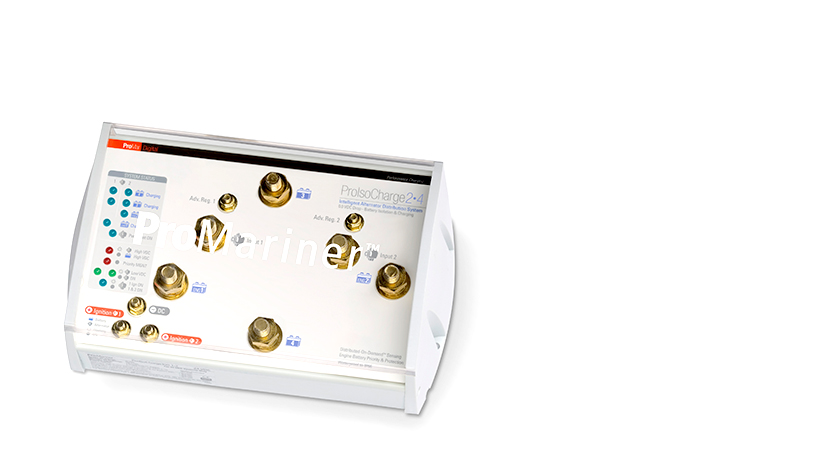

ProIso™ Charge 130-4
Part # 23127
The ProIso Charge 130-4 provides 130 Amps to four independent battery banks from two alternators in a 12V DC system.
Key Features
- 12V DC System
- 130 Amps
- 2 Alternators, 4 Batteries
- All-digital design and LED indicators provide active battery health and status
- Intelligent software control prioritizes discharged batteries while taking fully charged batteries offline
- Modular design for easy installation
- IP66 rated
- Five-year warranty
ProIso™ Charge 80-4
Part # 23248
The ProIso Charge 80-4 delivers 80 Amps of alternator output distribution. It protects the health of engine start batteries by isolating and charging four battery banks off two alternators in a 24V system.
Key Features
- 24V DC System
- 80 Amps
- 2 Alternators, 4 Batteries
- All-digital design and LED indicators provide active battery health and status
- Intelligent software control prioritizes discharged batteries while taking fully charged batteries offline
- Modular design for easy installation
- IP66 rated
- Five-year warranty

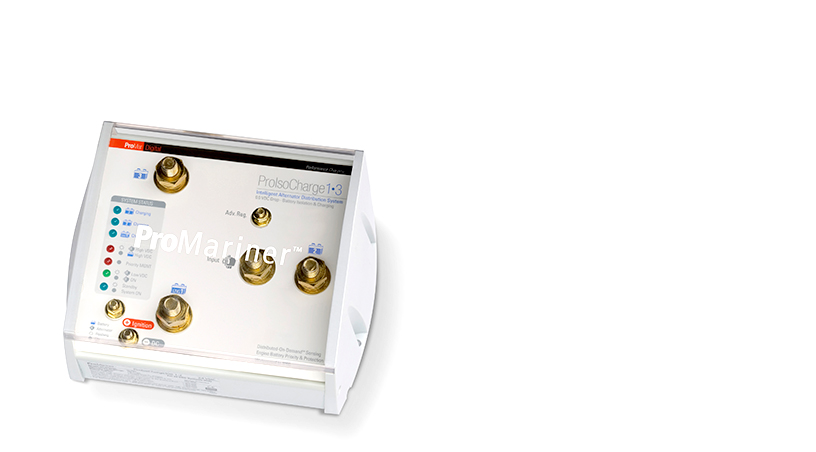

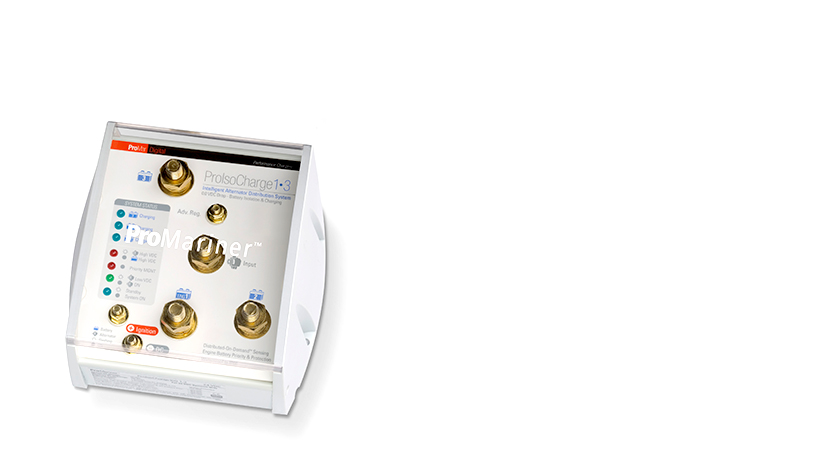

ProIso™ Charge 250-3
Part # 23126
Designed to protect the health of engine start batteries, the ProIso Charge 250-3 provides 250 Amps to three independent battery banks from a single alternator in a 12V system.
Key Features
- 12V DC System
- 250 Amps
- 1 Alternator, 3 Batteries
- All-digital design and LED indicators provide active battery health and status
- Intelligent software control prioritizes discharged batteries while taking fully charged batteries offline
- Modular design for easy installation
- IP66 rated
- Five-year warranty

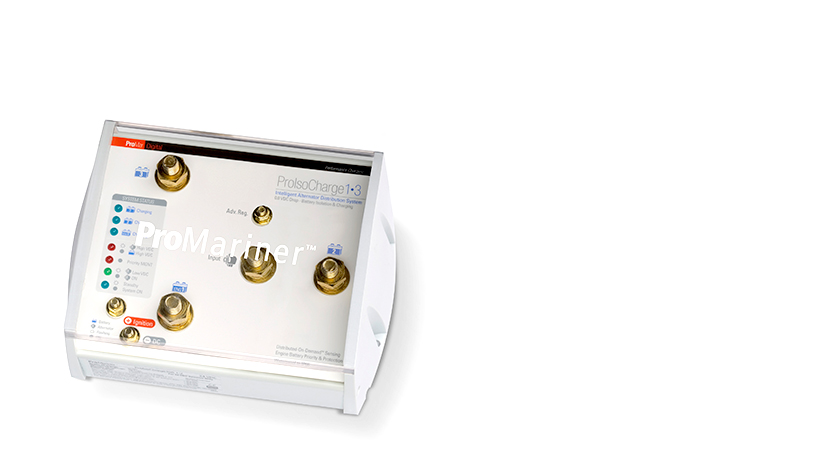

ProIso™ Charge 180-3
Part # 23125
The ProIso Charge 180-3 delivers 180 Amps of digitally-controlled alternator output distribution. It protects the health of engine start batteries by isolating and charging three independent battery banks off a single alternator in a 12V system.
Key Features
- 12V DC System
- 180 Amps
- 1 Alternator, 3 Batteries
- All-digital design and LED indicators provide active battery health and status
- Intelligent software control prioritizes discharged batteries while taking fully charged batteries offline
- Modular design for easy installation
- IP66 rated
- Five-year warranty
ProIso™ Charge 150-3
Part # 23247
The ProIso Charge 150-3 provides 150 Amps to three independent battery banks from a single alternator in a 24V system, protecting the health of engine start batteries.
Key Features
- 24V DC System
- 150 Amps
- 1 Alternator, 3 Batteries
- All-digital design and LED indicators provide active battery health and status
- Intelligent software control prioritizes discharged batteries while taking fully charged batteries offline
- Modular design for easy installation
- IP66 rated
- Five-year warranty
ProIso™ Charge 120-3
Part # 23124
The ProIso Charge 120-3 delivers digitally-controlled 120 Amps from a single alternator. By isolating and charging three independent battery banks in a 12V system it also protects the health of engine start batteries.
Key Features
- 12V DC System
- 120 Amps
- 1 Alternator, 3 Batteries
- All-digital design and LED indicators provide active battery health and status
- Intelligent software control prioritizes discharged batteries while taking fully charged batteries offline
- Modular design for easy installation
- IP66 rated
- Five-year warranty

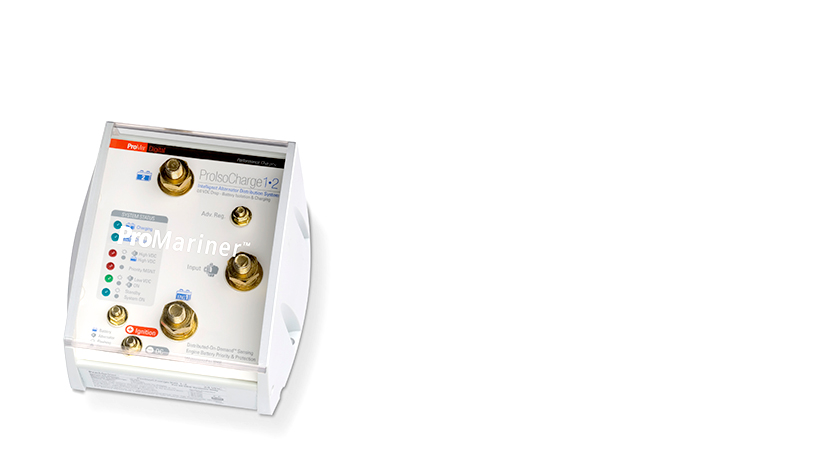

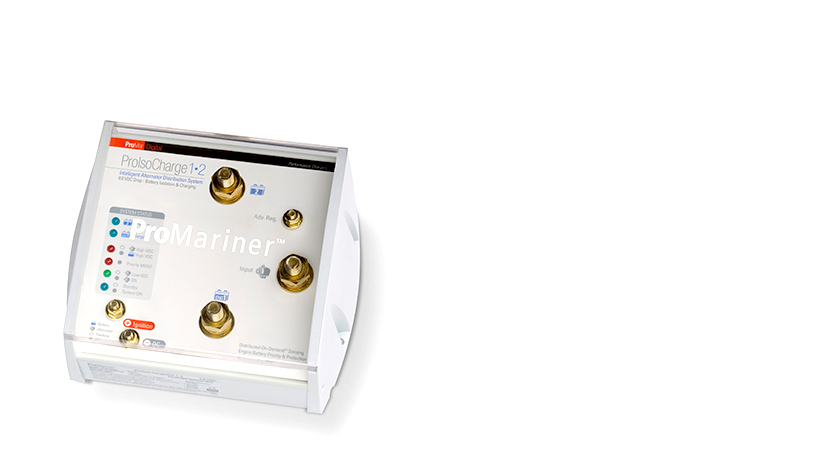

ProIso™ Charge 250-2
Part # 23123
The ProIso Charge 250-2 delivers 250 Amps of alternator output distribution and protects the health of engine start batteries by isolating and charging two independent battery banks off a single alternator in a 12V system.
Key Features
- 12V DC System
- 250 Amps
- 1 Alternator, 2 Batteries
- All-digital design and LED indicators provide active battery health & status
- Intelligent software control prioritizes discharged batteries while taking fully charged batteries offline
- Modular design for easy installation
- IP66 rated
- Five-year warranty
ProIso™ Charge 180-2
Part # 23122
The ProIso Charge 180-2 provides 180 Amps to two independent battery banks from a single alternator in a 12V system, protecting the health of engine start batteries.
Key Features
- 12V DC System
- 180 Amps
- 1 Alternator, 2 Batteries
- All-digital design and LED indicators provide active battery health & status
- Intelligent software control prioritizes discharged batteries while taking fully charged batteries offline
- Modular design for easy installation
- IP66 rated
- Five-year warranty
ProIso™ Charge 120-2
Part # 23121
The ProIso Charge 120-2 delivers digitally-controlled 120 Amps from a single alternator. At the same time, it protects the health of engine start batteries by isolating and charging two battery banks in a 12V system.
Key Features
- 12V DC System
- 120 Amps
- 1 Alternator, 2 Batteries
- All-digital design and LED indicators provide active battery health & status
- Intelligent software control prioritizes discharged batteries while taking fully charged batteries offline
- Modular design for easy installation
- IP66 rated
- Five-year warranty
